Complete iRacing Rig Under $1,000 in 2026 (Full Build)

Some links on this page may earn RealIRacing a commission at no extra cost to you. Gear I personally race on is called out as such; other picks are researched recommendations.

My rig today runs a MOZA R9 — but it didn't start there, and yours doesn't have to either. This is the complete sub-$1,000 iRacing build I'd buy right now if I were starting over: every part, a running total, the places where cheap is genuinely fine, the two places where cheap will cost you lap time, and the exact order I'd upgrade in afterward.

One rule before the parts list: this budget covers everything you physically drive with — wheelbase, rim, pedals, mounting, a seat solution — plus your first year of iRacing itself. It does not include a PC or monitor. iRacing is one of the lighter sims to run, so if you own any mid-range gaming PC from the last several years, you're probably already set at 1080p or 1440p. If you don't, that's a separate budget, and no honest "$1,000 full rig" article can pretend otherwise.

The build at a glance — with running total

That leaves real margin under the $1,000 line — margin you can either bank, or immediately spend on the first upgrade in the list at the bottom of this post. Prices move constantly, so treat every number here as a street-price approximation, not a quote. The structure of the build is the durable part.

Part 1: The wheelbase — go direct drive, even at the entry tier

The single most important call in a budget build is this one: an entry direct-drive base beats a belt or gear-driven wheel at a similar all-in price, and in 2026 the entry DD bundles have gotten cheap enough that the old advice — "start on a Logitech, upgrade later" — is no longer automatic.

iRacing sends one raw torque signal from the physics engine to your wheel. Gear and belt wheels pass that signal through mechanical linkages that soften peaks and blur fine detail. Direct drive connects the motor straight to the shaft — what the sim sends is what you feel. I went deeper on this in my full wheel ladder guide, but the short version is: fidelity is the thing you're buying, and DD is where fidelity starts.

The pick here is the MOZA R5 bundle: a ~5.5 N·m direct-drive base, the ES rim, and SR-P Lite pedals in one box at roughly $500. That's a complete driving kit from one brand, on one software suite. Fanatec's CSL DD is the other credible entry-DD route — a very good base, but by the time you add a rim and pedals you're usually past the R5 bundle's all-in price, which matters when the ceiling is $1,000.

There's a quieter reason I'd start inside the MOZA ecosystem: upgrade continuity. When I moved up to the R9, the rim, pedals, and all my Pit House muscle memory came with me. Your first upgrade replaces one part, not the whole rig.

Part 2: Pedals — the honest compromise in this build

The SR-P Lite pedals that ship in the R5 bundle use a spring-based brake, not a load cell. Let me be straight about what that means: you'll brake by pedal travel (how far you push) instead of by pressure (how hard you push). Real braking consistency — the kind that keeps your Safety Rating clean and your lap times repeatable — comes from pressure memory in your leg, and that's what a load cell gives you.

So why not put a load cell in the build? Because it's the compromise that respects the budget without poisoning the experience. A spring brake is completely fine to learn braking points, racing lines, and traffic craft on — the things that actually make a new iRacer faster in their first six months. It's also why the load-cell brake sits at number one on the upgrade list, ahead of everything else including more wheel torque.

Part 3: Mounting — the part everyone skimps on, and shouldn't

Here's the mistake I see constantly: someone budgets $500 for a direct-drive base and $0 for what it bolts to. A ~5.5 N·m base clamped to a flexy desk will move — the desk shifts under braking, the clamp walks, and every bit of that movement is force feedback detail you paid for and are now throwing away.

Budget ~$130–180 for a rigid folding wheel stand with a proper pedal deck. It's not glamorous, it folds away if you're short on space, and it will hold an entry DD base solidly enough that your inputs stay consistent. If your desk is genuinely heavy and you're bolting (not clamping), you can defer this — but be honest with yourself about the flex, because at the R9 tier and above a stand or cockpit stops being optional entirely.

Part 4: The seat — $0, seriously

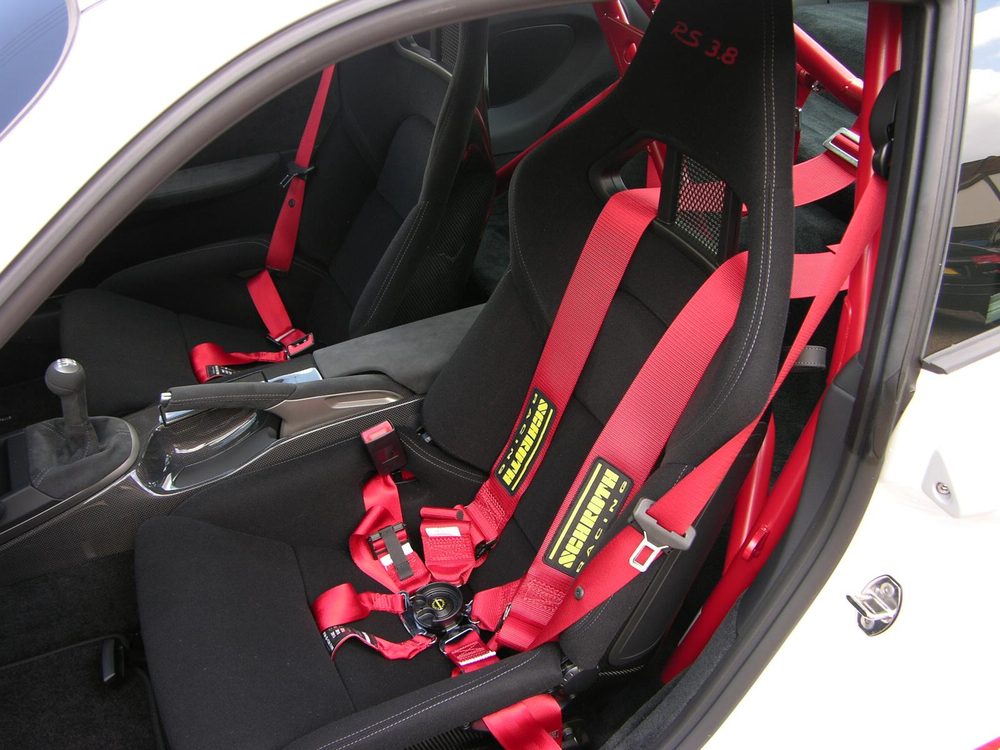

A racing seat changes immersion, not lap time. Your existing office chair with the casters locked (or pulled out entirely) is fine for the first year — the one non-negotiable is that it can't roll backward under braking. A proper cockpit with an integrated seat is upgrade number two; it solves rigidity and seating in one purchase, which is why I don't recommend a standalone budget seat now.

Part 5: iRacing itself — the line item people forget

The service is part of the rig. Budget ~$150 for year one: the annual subscription plus two or three pieces of content beyond the included base cars and tracks. My advice — resist buying content by vibes. Pick one series you'll actually run a full season in, buy the car and the handful of tracks that season visits, and stop. Rookie and D-class series use mostly included content anyway while you build your Safety Rating (here's my full guide on how SR works — read it before your first race, not after your first protest).

Where to skimp vs where to spend

The pattern: skimp on immersion, spend on information. Everything in the left column makes the rig feel cooler; everything in the right column changes what your hands and feet actually know about the car. On a $1,000 ceiling, information wins every time.

The upgrade order — what I'd buy next, in order

1. Load-cell brake (~$150–250)

First, always. Braking by pressure instead of travel is the biggest consistency gain available at any price, and consistency is lap time in iRacing — it's also Safety Rating, which gates your entire license progression. Staying inside your pedal ecosystem makes this a drop-in swap.

2. A proper cockpit (~$250–400)

Replaces the stand and the office chair in one move. Fixed seating position, zero flex, and your muscle memory finally has a stable reference frame. This is also the prerequisite for upgrade three — don't put a bigger base on a wobbly platform.

3. Wheelbase torque — the R9 tier (~$400–600)

This is where I live now, and I wrote up the exact Pit House and iRacing FFB settings I run on my R9. At ~9 N·m you get headroom that entry bases can't offer — full detail on the heaviest braking zones without clipping. But notice it's third on the list, not first: more torque through a flexing frame with an inconsistent brake foot makes you no faster.

4. Display — ultrawide, triples, or VR

Last, and genuinely optional for a long time. A single decent monitor is enough to reach the top splits. When you're ready, I compared VR against triple monitors for iRacing here — it's a bigger fork in the road than most people expect, and it deserves its own budget cycle.
